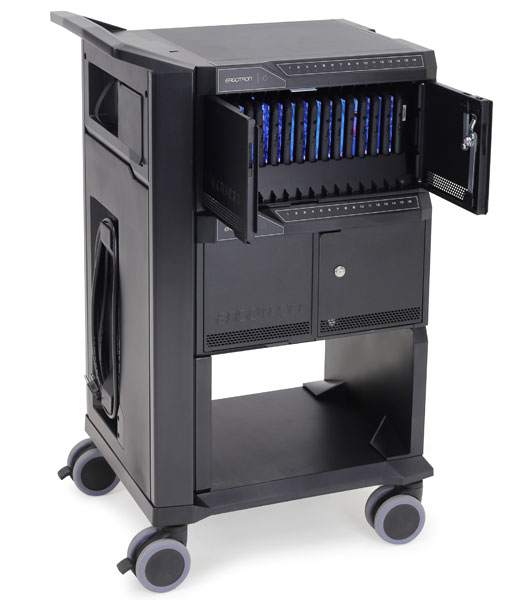

平板电脑管理推车 32 - 适用于三星 Galaxy Tab Active 部件号 DM32-1016-5
专为三星 Galaxy Tab Active 8.0 设计：通过多重转换，为所有必要的个人的平板电脑进行充电和部署。快速连接扩展坞采用三星的 POGO 排针连接器——无需安装或维护充电电源线！紧锁的钢门可在不使用时保持平板电脑安全稳固。
* 订购符合当地电力系统要求的零部件。

好处

无需安装¬

• 本推车完全组装，可随时从箱子中取出使用
• 方便使用。插入柜子，连接平板电脑——即可充电！

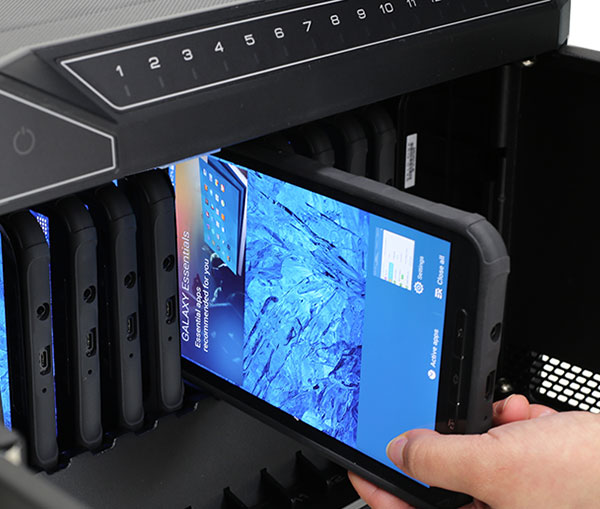

• 无需安装充电电源线。快速连接扩展坞采用三星的 POGO 排针连接器

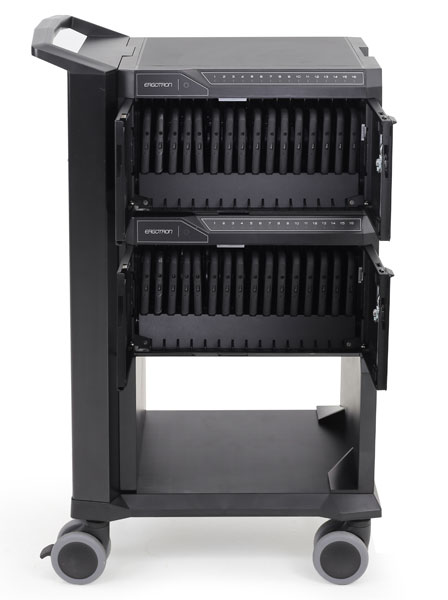

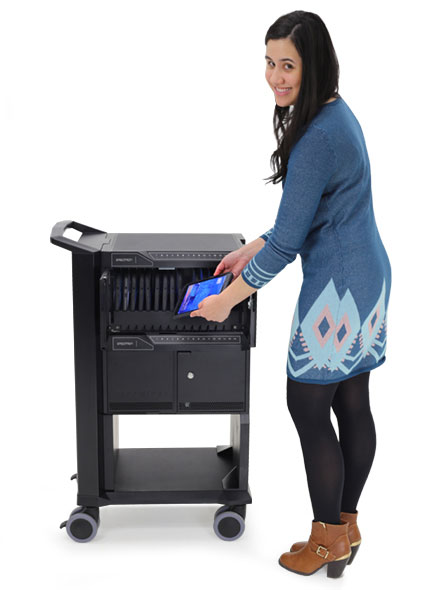

• 超级紧凑的推车设计，使用三星随附的外壳时可容纳多达 32 台三星 Galaxy Tab Active 8.0 平板电脑
• 所有平板电脑同时通过连接到墙壁的一根电源线进行充电
• 单独的状态指示灯 LED 指示每台平板电脑的充电进度
• 高强度 ABS 塑料外壳“方便进行无线同步”。不会出现全钢柜常见的信号干扰问题

坚固、耐用的结构

• 钢管和铝合金挤压型框架

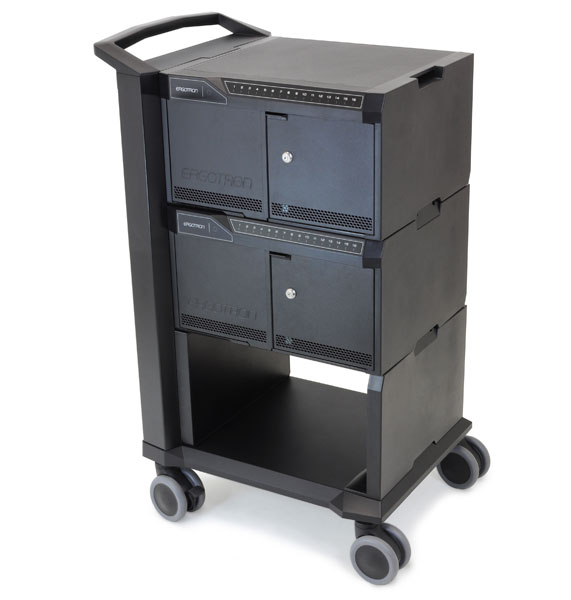

• 钢制检修门
• 耐用、方便清洁的外部采用优质阻燃 ABS 组成

安全的储存

• 耐用的三点锁定组件钢门提供强大的防盗功能
• 选配的防护支架套件可将整个推车锁定在地面或墙壁

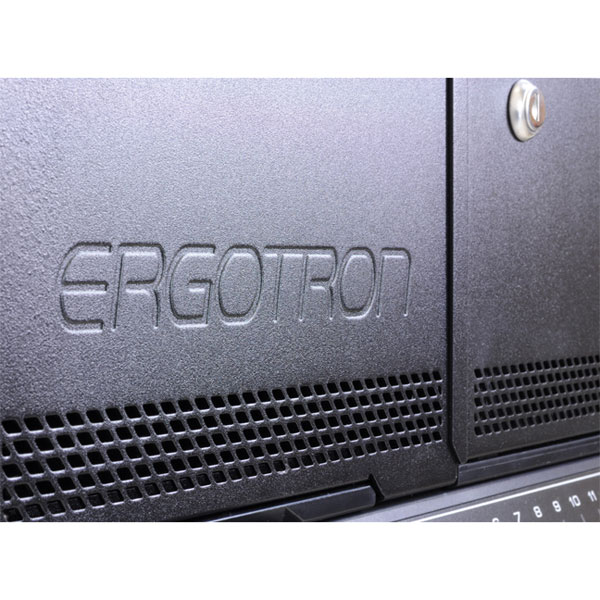

• 通风、封闭的储存区域确保平板电脑安全、可靠和散热

安全认证

• Ergotron 不仅使用经过 UL 认证的部件，而且整个系统均通过了 UL 认证，以确保在教室、医疗保健或企业环境中的安全使用
• 通过了 UL 60950-1 标准的检测和认证，并且符合 FCC 要求以及所有适用的具体国家规定

• Part Numbers: North America = DM32-1016-1; Europe = DM32-1016-2; United Kingdom/Ireland = DM32-1016-3; Hong Kong/Malaysia/Singapore = DM32-1016-3; Australia/New Zealand = DM32-1016-4; China = DM32-1016-5; Thailand = DM32-1016-9
• Description: Tablet Management Cart with Individual Status Indicators, 32 device capacity, for Samsung Galaxy Tab Active 8.0 (black)
• ‡ Compatible only with Samsung Galaxy Tab Active 8.0

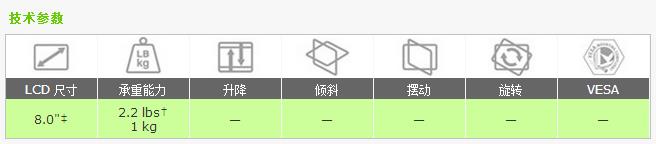

• † Weight Capacity: Individual tablets up to 2.2 lbs (1 kg); top surface holds up to 25 lbs (11.4 kg)

Certification

• UL 60950-1 Information Technology Equipment – Safety, CAN/CSA C22.2 No. 60950; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands and Entertainment Centers for Use with Audio and/or Video Equipment
• IEC 60950-1 worldwide safety standard
• For EMC: FCC part 15 Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, EN55022 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, EN55024

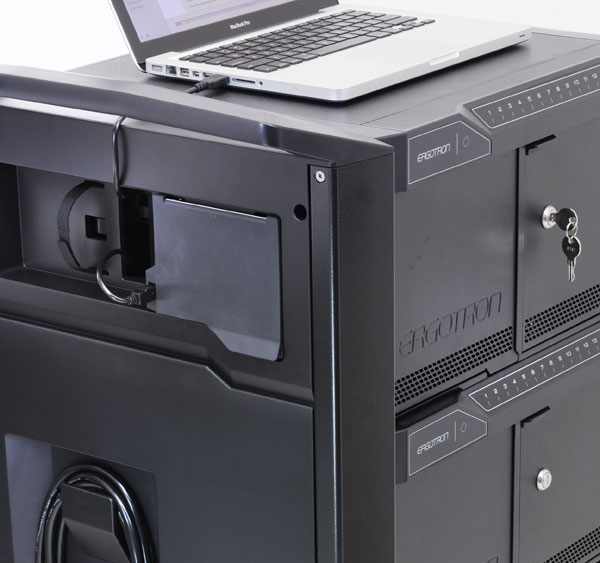

• Complies with USB 2.0 standard
• Acoustic testing indicates very quiet operation at 41.4 dBA
• Four 4" (100 mm) smooth gliding dual wheel casters for easy push/pull mobility. Two locking casters ensure lock-in-place stability

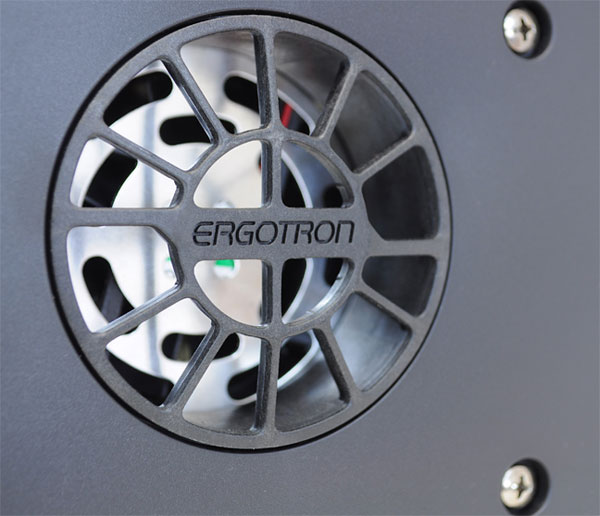

• Cooling/ventilation: Two 5V DC continuous operating fans

External Auxiliary Outlet(s)

• One or two outlets, depending on region
• 100/120V~,3A,50/60 Hz or 220/230/240V~,1.5A, 50/60 Hz

Power System

• 100/120V~,12A,50/60 Hz or 220/230/240V ~,5.5A, 50/60 Hz depending on region and model of cart
• Power cord = 12.5' (3.8 m) long

Environmental

• Temperature Range: operating = 0° to 40°C (32° to 104°F); storage = -40° to 60°C (-40° to 140°F)
• Relative Humidity (maximum): operating = 10% to 90% (non-condensing); storage = 5% to 95% (non-condensing)
• Altitude (maximum): 2000 m (6,562 ft)

Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant
Product Dimensions: 23"W x 18.4"D x 39.3"H (58.4 x 46.7 x 100 cm)
Product Weight (unloaded): 100 lbs (45.4 kg)
Shipping Dimensions: 46.1" x 29.9" x 22.8" (117 x 76 x 58 cm)
Shipping Weight: 147 lbs (67 kg)
Warranty: Five (5) years; two (2) years for power module; one (1) year for other electrical components

说明书

安装手册 IM  尺寸图示说明 DI  产品说明书 PS
