Part Number: 45-245-026
|

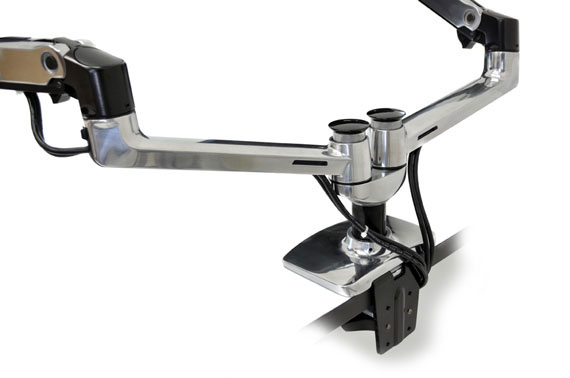

Description: LX Dual Side-by-Side Arm (polished aluminum)
|
Includes two (2) LCD arms and extensions, pole, t-bracket, desk clamp and grommet mount
|
Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)
|
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
|
Improved LX Arm Features & Benefits
|
Polished aluminum construction offers greater durability and enhanced aesthetics
|
Snap-fit cap secures interface of arms to extensions for greater stability
|
†
Larger displays (e.g. 23" to 24" screen sizes) cannot be positioned in a
stacked orientation; larger displays can only be placed side by side
|
*
Weight Capacity: Individual monitor weight = 7–20 lbs (3.1–9.1 kg);
maximum combined weight = 40 lbs (18.1 kg). Monitor depth may affect
weight capacity. Read more
|
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
|
Desk
clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches
through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick
|
Product Weight: 13.9 lbs (6.3 kg)
|
Shipping Dimensions: 19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)
|
Shipping Weight: 17.3 lbs (7.9 kg)
|
Warranty: Five (5) years
|
