Part Number: 45-248-026

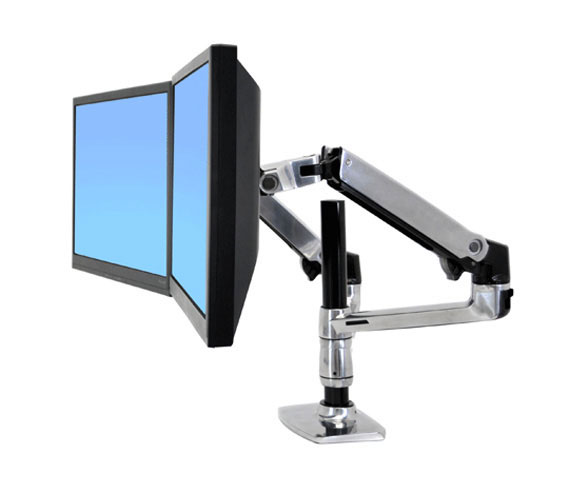

Description: LX Dual Stacking Arm (polished aluminum)

Includes two (2) LCD arms and extensions, pole, desk clamp and grommet mount, one (1) notebook tray, notebook fastening kit (you choose: Velcro, non-slip pad or clips)

Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Improved LX Arm Features & Benefits

Polished aluminum construction offers greater durability and enhanced aesthetics

Snap-fit cap secures interface of arms to extensions for greater stability

New clamp and grommet mount base ensures greater stability of display and arm

† To facilitate stacking of monitors, maximum outside height of display can be no more than 14" (35 cm). Most monitors with screens of 24" or less fit within this specification. Larger screen sizes are allowable when positioning displays side by side

* Weight Capacity: Maximum individual LCD weight = 7 to 20 lbs (3.1 to 9.1 kg); notebook weight range = 2.5–12 lbs (1.1–5.4 kg); maximum combined weight = 40 lbs (18.1 kg). Monitor depth may affect weight capacity. Read more

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick

Shipping Dimensions: 19.25" x 15.25" x 9" (487 x 387 x 229 mm)

Shipping Weight: 15.75 lbs (7.18 kg)

Warranty: Five (5) years
